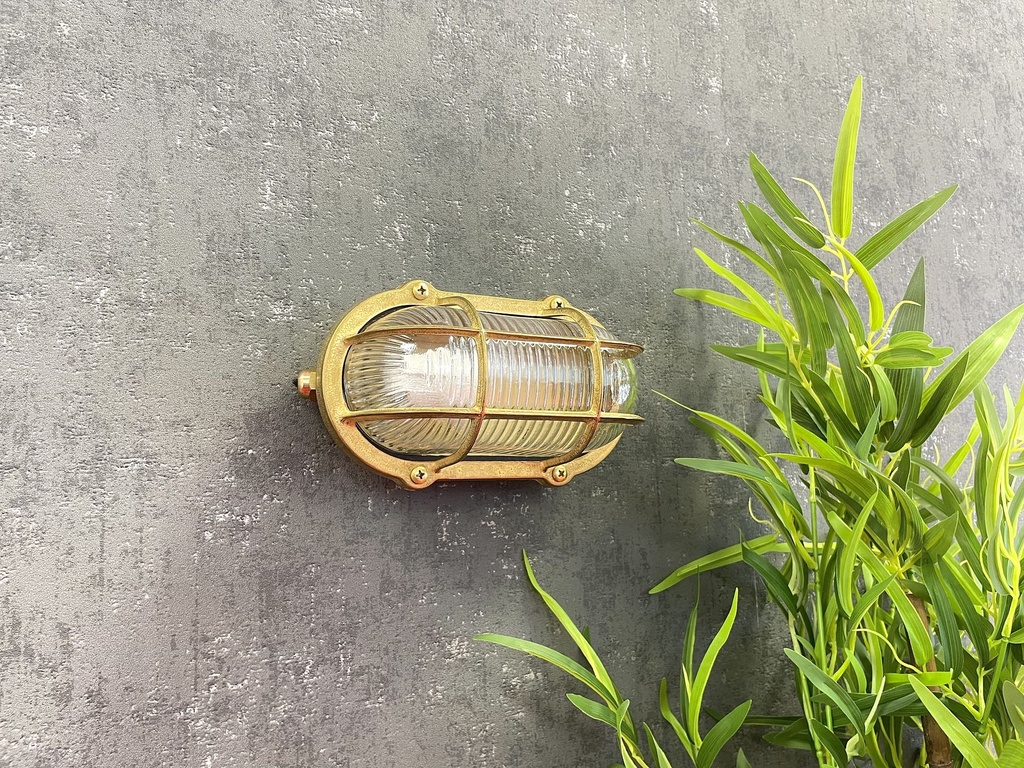

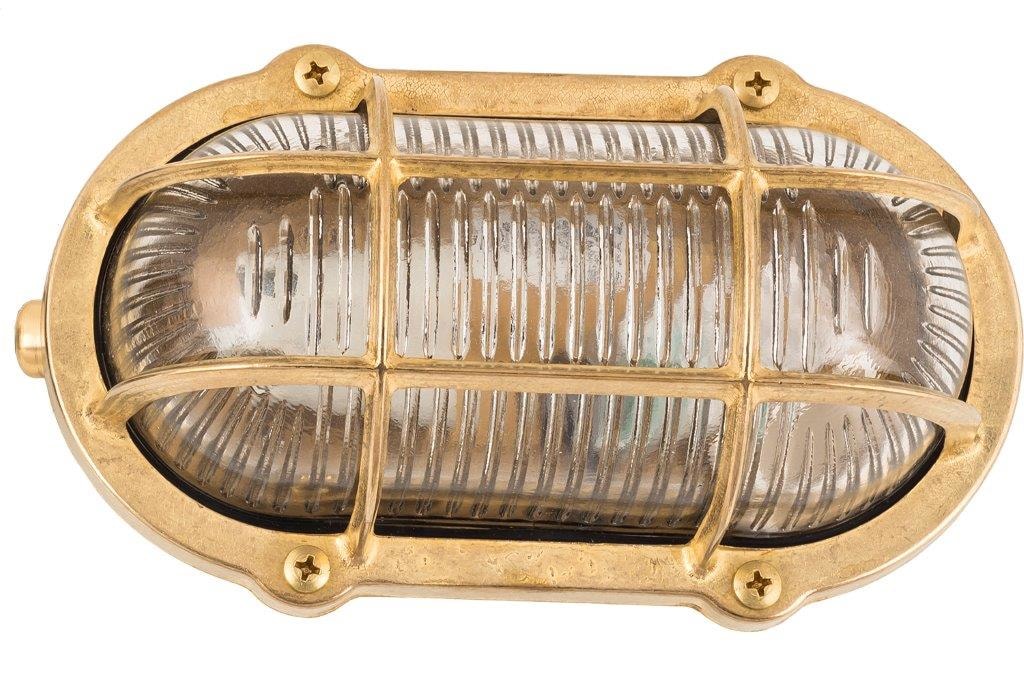

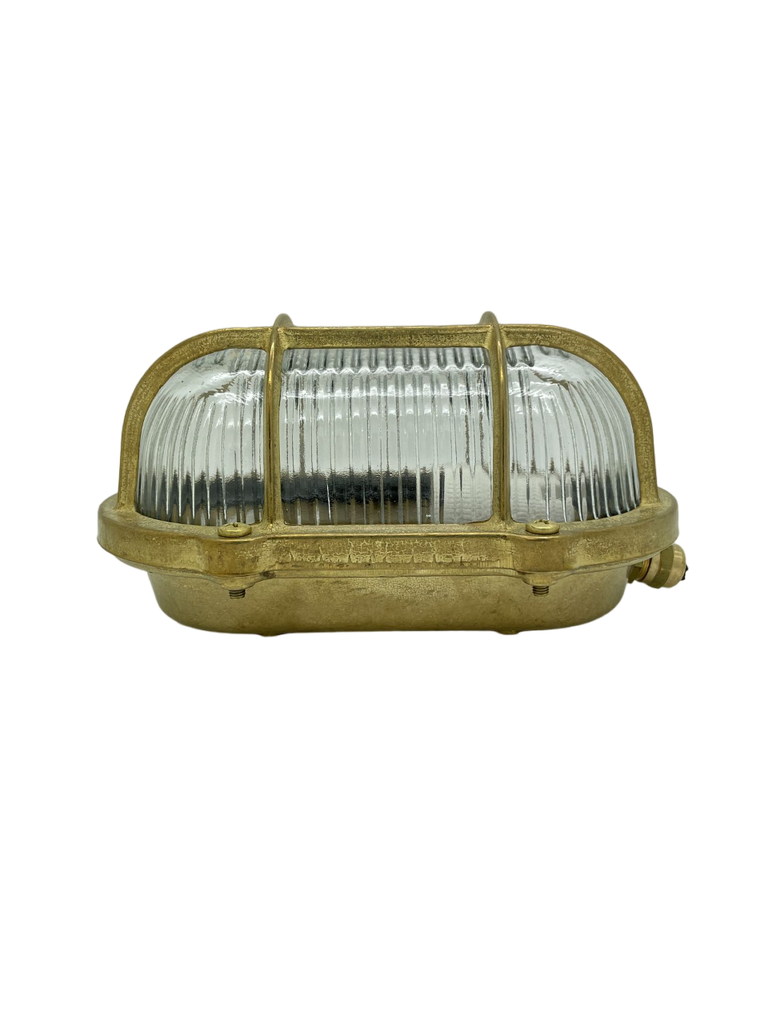

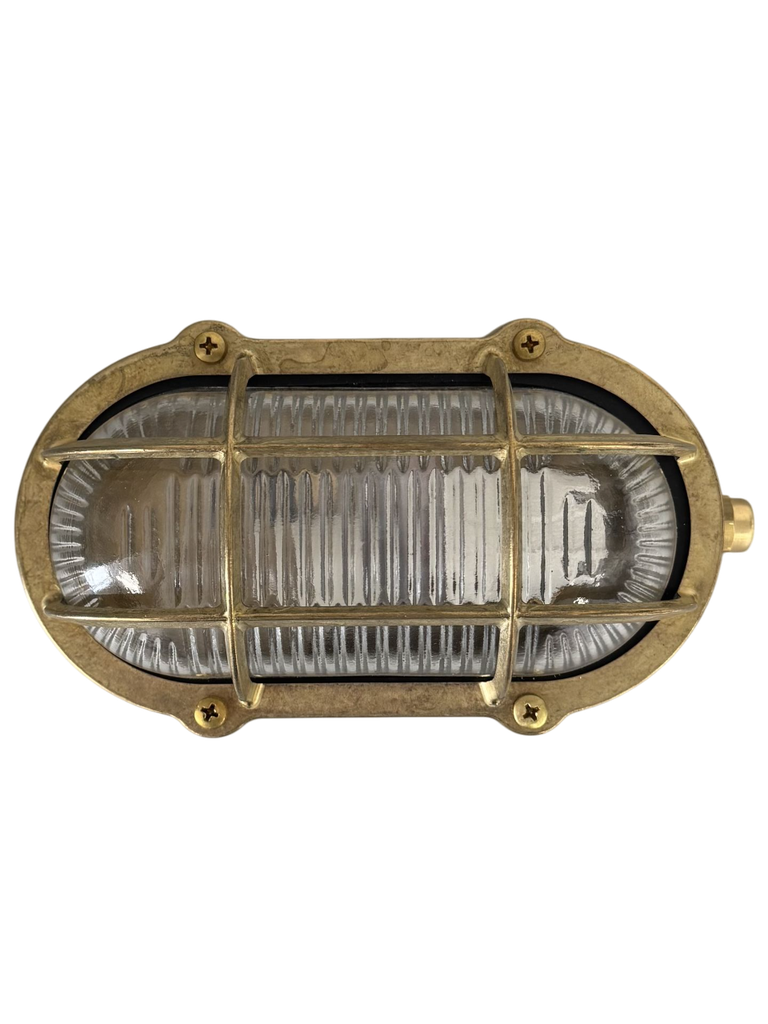

Merchant Bulkhead

Classic slimline oval bulkhead.
Materials available: Raw brass, antique brass, satin nickel.
Base material: Solid Brass
Clear ribbed glass diffuser

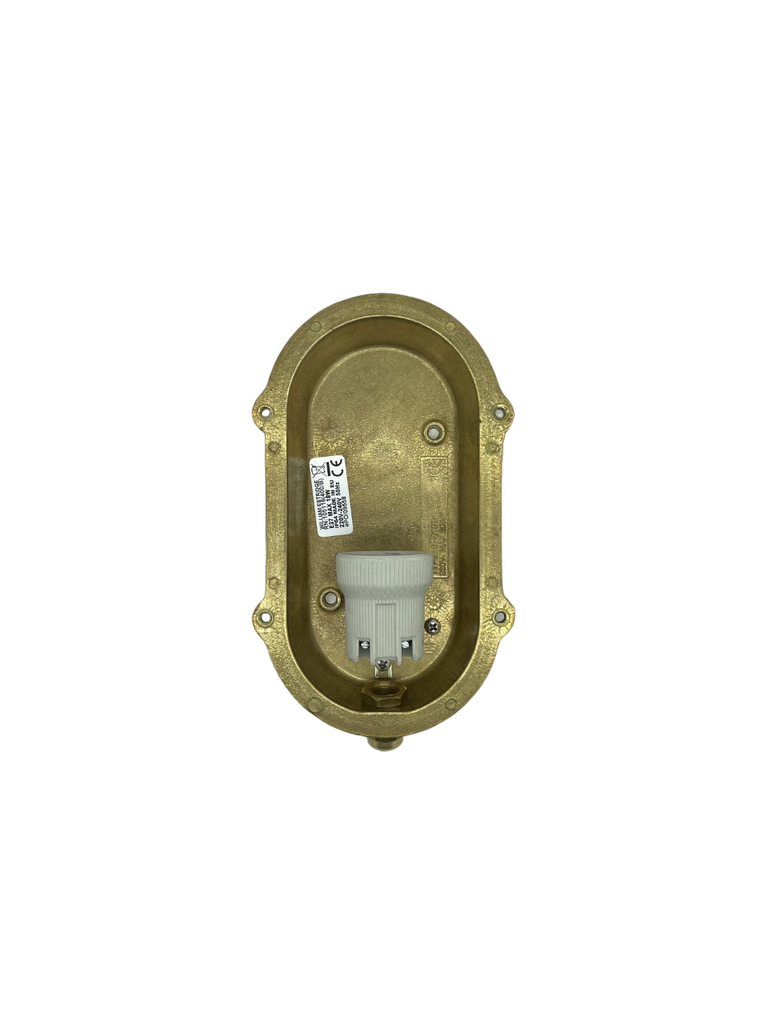

Takes 1 x ES / E27 lamp
IP64 rated

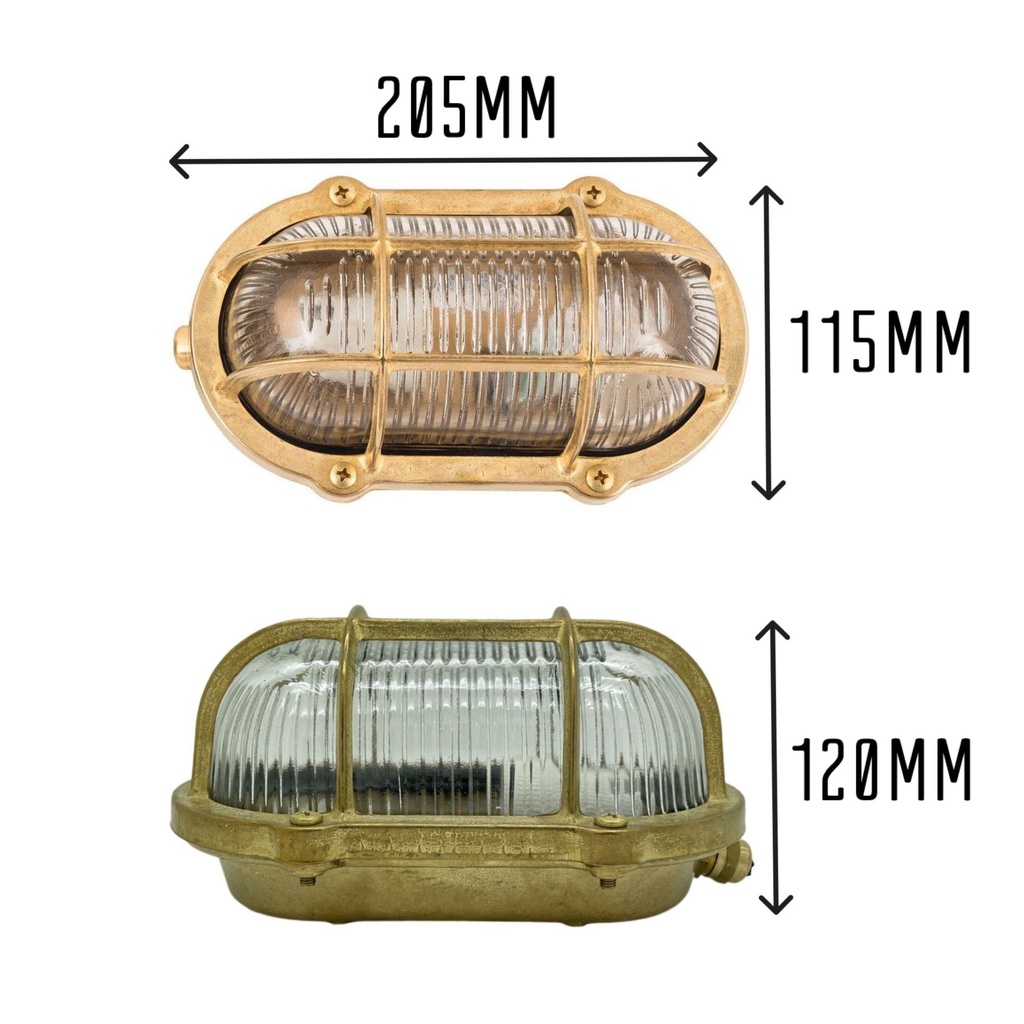

Length: 205mm
Width: 115mm
Depth: 120mm

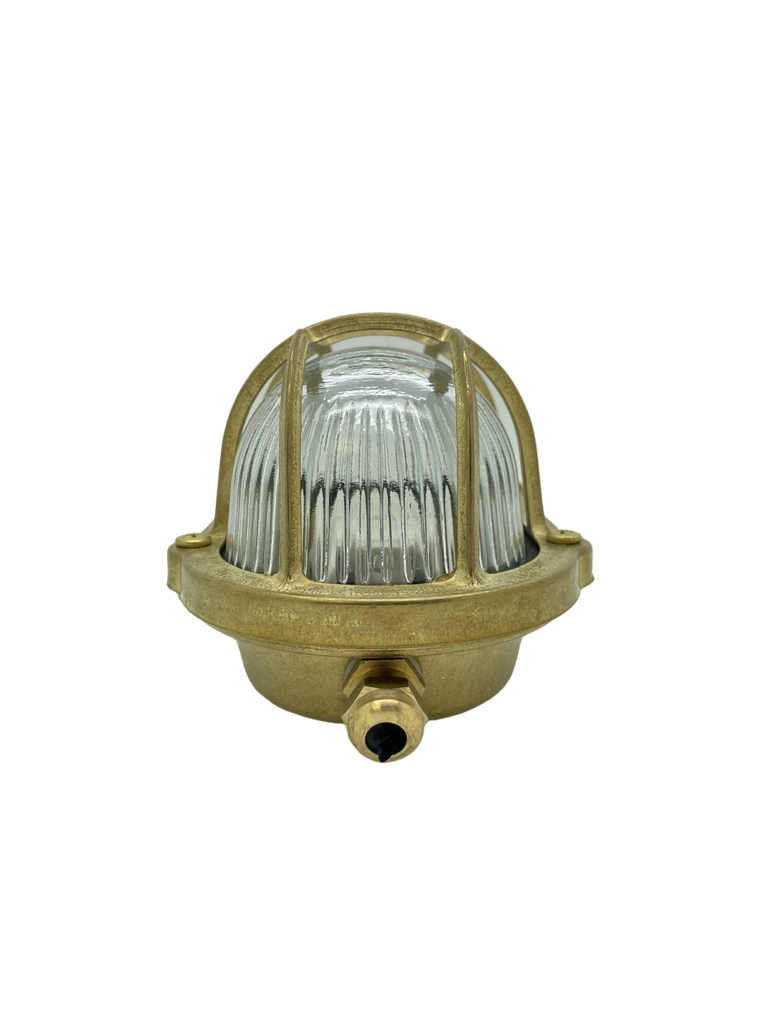

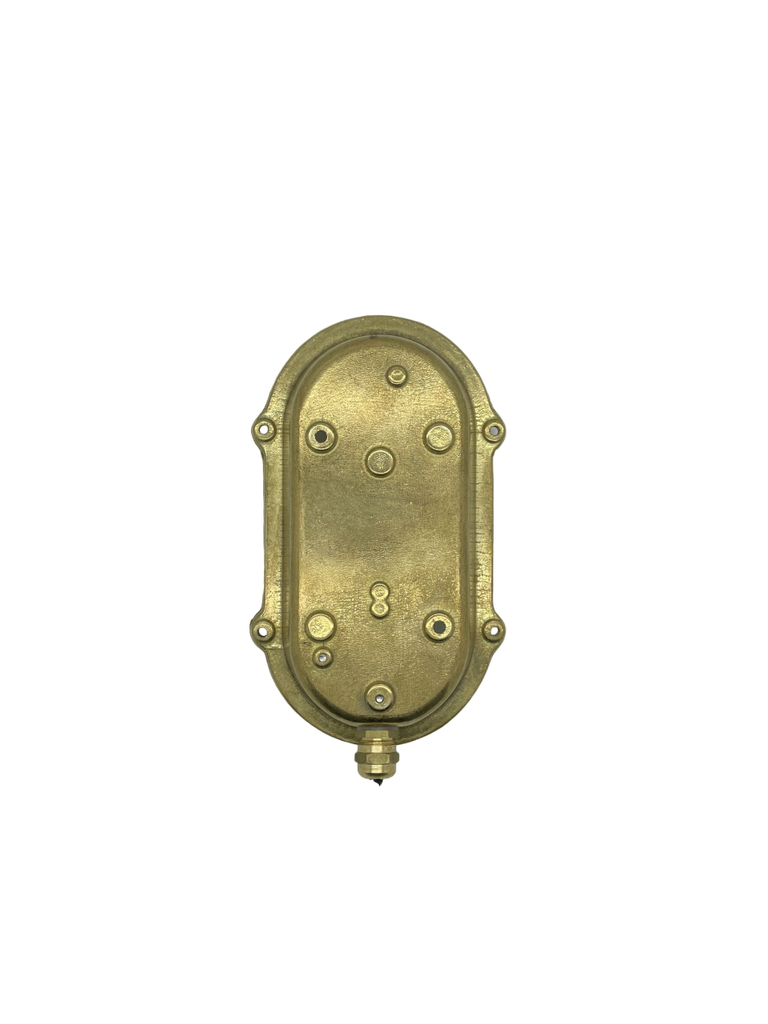

Cable Gland entry at end or rear (Brass blank to replace gland included).
Conduit adaptor available separately.

144.26 144.26 Excluding VAT

  • Finish Options
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Neat solid looking brass bulkhead, we sometimes call these the commercial range as we've replaced the wing nuts with Phillips Screws.  So there's less danger of the front cover being taken off by someone who shouldn't.

Small and extremely tough, these little chaps will enhance any area they are fitted.

As the fitting is manufactured from brass it makes it a favourite for projects situated in coastal regions.  The bulb holder is ES (E27) so it can accommodate a wide range of bulbs.


Order before 3pm, get tomorrow.

See above for stock levels. Saturday delivery costs extra. Excludes Sundays.

Antique brass replenish time is only 1 day.

If you require more of any other finish than the quantity listed above, please contact us for an approximate lead time.  Typically we expect stock replenishments on a 6 week cycle, so stock replenishment occurs any time from 1 day to 6 weeks.


Application / Guidance

The Navigator bulkheads have been designed for applications outdoors where an industrial or nautical effect is required. The solid brass body has an aged, original-looking finish. Cabling connection is achieved via side gland, rear entry (blanking plate included) or by conduit (conduit adaptor available separately).

Warnings / Disclaimers

Before starting any electrical work, always switch off at the mains.  If in doubt consult a qualified electrician.
