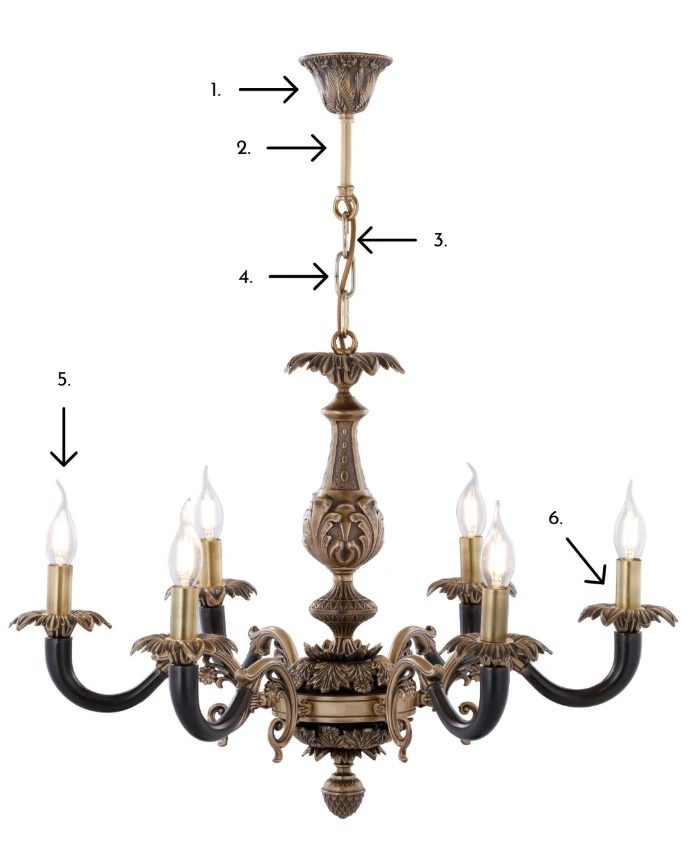

Chandelier Hanging Parts: What You Need to Know

1. Ceiling Rose / Ceiling Cup – The decorative cover that conceals the ceiling fixings and electrical connections. Available in different shapes, sizes and finishes, with suspension assemblies suitable for different chandelier weights.

2. Suspension Rod and Cover – The rod connects the ceiling fixing to the chandelier's suspension chain, while the cover conceals the connections. These come in different designs and load ratings.

3. Flex (Cable) – Available in various colours, finishes and constructions. The correct specification depends on the chandelier's wiring requirements. Class I fittings require an earth connection, typically using three-core flex.

4. Chain – Supports the weight of the chandelier. When choosing a replacement, check the safe working load, link dimensions, required length and compatibility with the suspension fittings.

5. Lamp (Light Bulb) – The lamps pictured are decorative flame-tip candle lamps. When replacing them, check the cap type, dimensions and permitted wattage.

6. Candle Tubes – Decorative sleeves that fit over the lampholders (8), commonly made from card or plastic. Check the diameter and height to ensure a suitable fit.

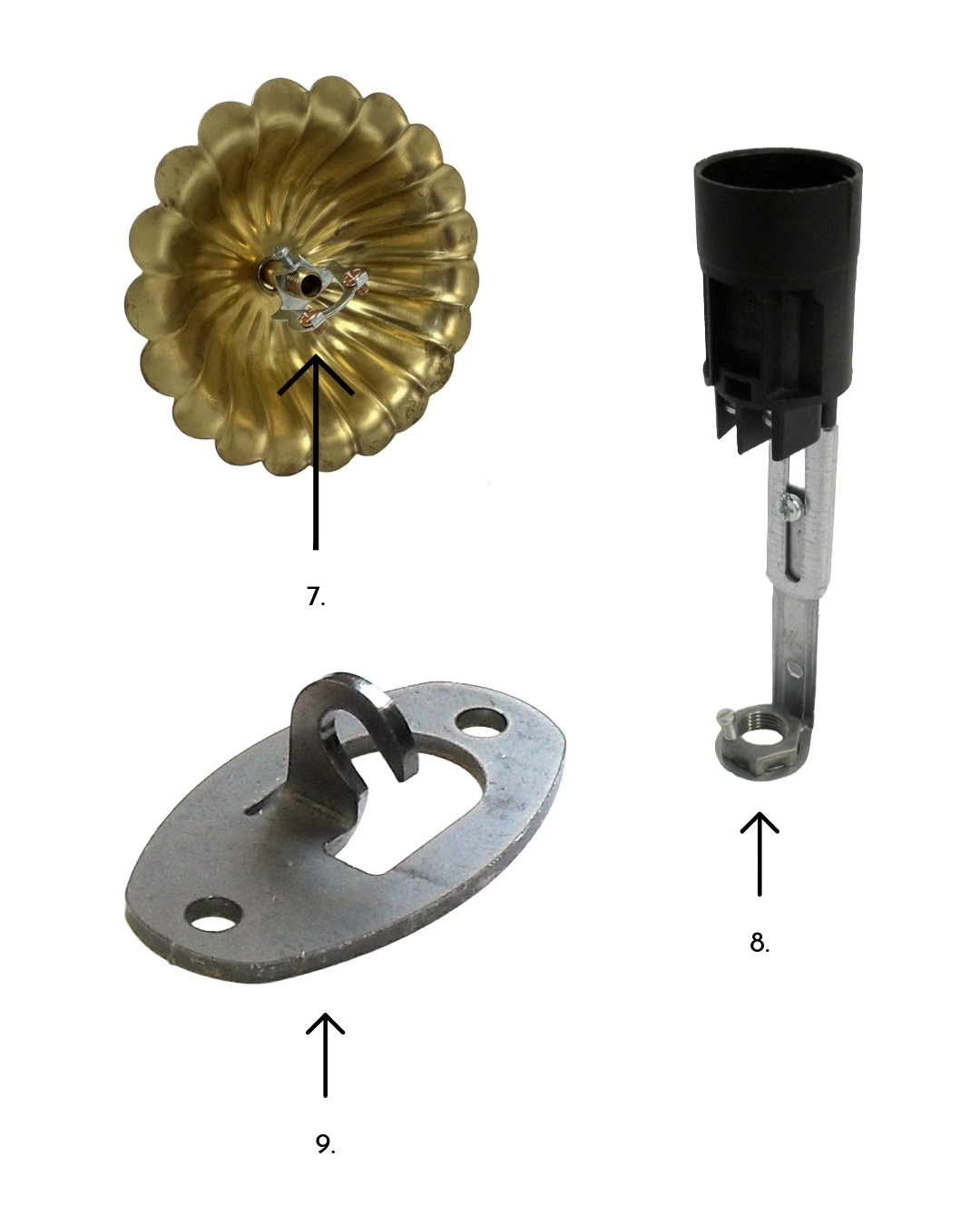

7. Suspension Loop – Part of the chandelier rose assembly, providing a connection to a suitable ceiling hook. The loop must be compatible with the suspension arrangement and its required load rating.

8. Chandelier Lampholder – Usually a slim skeleton-style lampholder concealed by a candle tube (6). Common types include E14 SES (Small Edison Screw) and E10 MES (Miniature Edison Screw). Check the cap size, mounting thread and overall height when sourcing replacements.

9. Ceiling Hook Plate – A load-bearing fixing used to support the chandelier or its suspension assembly. Available in different designs and weight ratings, it must be securely fixed to a suitable ceiling structure.

Part 1 – Ceiling Hooks and Chandelier Roses

Choosing the right ceiling components starts with two things: the weight of your chandelier and how it needs to be suspended.

For some chandeliers, a suitably rated ceiling hook plate is all that's required. These are available in different designs and weight ratings, with some incorporating a decorative dome to conceal the ceiling connections.

For other fittings, particularly larger chandeliers or those requiring a more decorative finish, a separate chandelier rose and ceiling hook or mounting bracket may be more suitable.

How does a chandelier rose work?

A chandelier rose typically consists of four main components:

1. Ceiling hook or mounting bracket – Provides the connection to the ceiling structure.

2. Ceiling cup – The decorative cover that conceals the ceiling fixing and electrical connections.

3. Suspension rod and loops – Connect the ceiling hook to the chandelier's suspension chain.

4. Locking collar – Holds the ceiling cup in position against the ceiling.

Chandelier roses are available in various shapes, sizes and finishes, from simple pressed-metal designs to heavier-duty cast brass assemblies.

Choosing the right ceiling hook

Lampfix offers ceiling hook plates and mounting brackets with different safe working loads (SWLs), including 21 kg, 25 kg, 26 kg, 40 kg and 100 kg options.

As well as checking the weight rating, consider the dimensions of the fixing, the ceiling structure and whether it will fit inside your chosen ceiling rose.

Our Ceiling Hook Load Weight Comparison provides further guidance on compatible components.

Choosing the right chandelier rose

For smaller chandeliers, our light-duty chandelier roses offer a choice of plain, shaped and decorative designs.

For larger or heavier fittings, the Chelsea, Hampstead and Kensington ranges offer cast brass options with different cup sizes, profiles and weight ratings.

When selecting a rose, consider the cup diameter and height, the space needed to conceal the connections, and the compatibility of the complete suspension assembly.

The comparison tables below will help you narrow down the options.

Important: The safe working load of an individual component does not guarantee the capacity of the complete installation. Every load-bearing component, together with the ceiling structure and fixings, must be suitable for the chandelier's weight.

Ceiling Hook Plates & Mounting Brackets

Compare the safe working loads and key features of our ceiling mounting options.

Product	SWL	Key Features

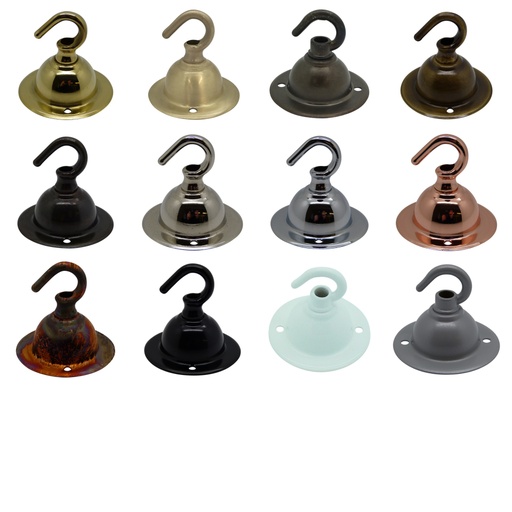

21kg Ceiling Hook Plate	21kg	2½" diameter brass hook plate with decorative dome. BESA box compatible.

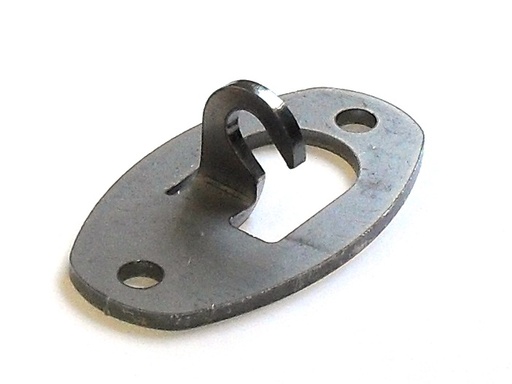

25kg Heavy Duty Ceiling Hook Plate	25kg	Steel plate, 70 × 40mm, 3mm thick. Shallow profile.

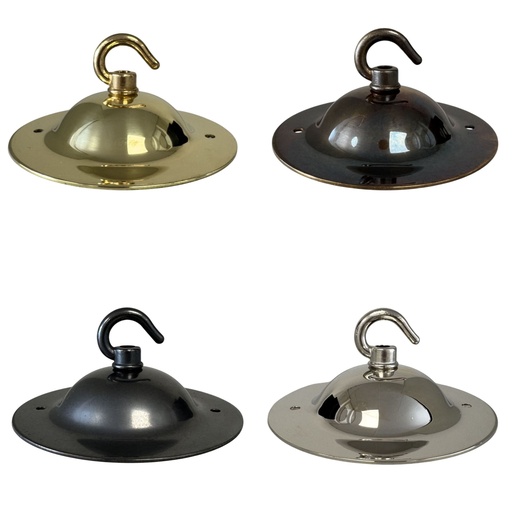

26kg Heavy Duty Brass Hook Plate	26kg	Solid brass, 114mm wide, with decorative domed cover. Multiple finishes.

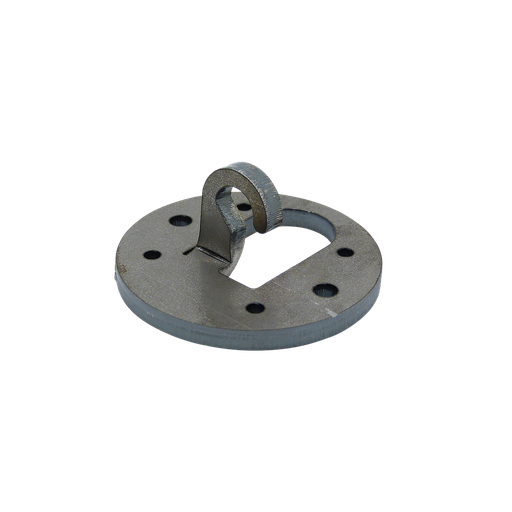

40kg Heavy Duty Ceiling Hook Plate	40kg	Steel plate, 70mm diameter, 6mm thick. Low-profile design.

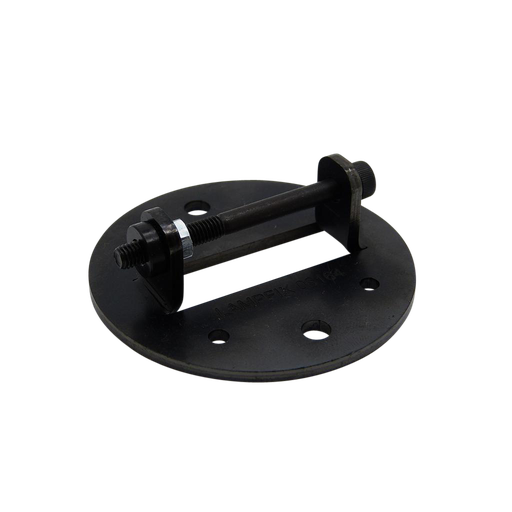

100kg Chandelier Mounting Bracket	100kg	Heavy-duty steel bracket for suitably rated chandelier suspension assemblies.

For further information, see our Ceiling Hook Load Weight Comparison .

Chandelier Rose Comparison

Compare our chandelier roses by safe working load, cup diameter and design.

Chandelier Rose	SWL	Cup Ø	Key Features

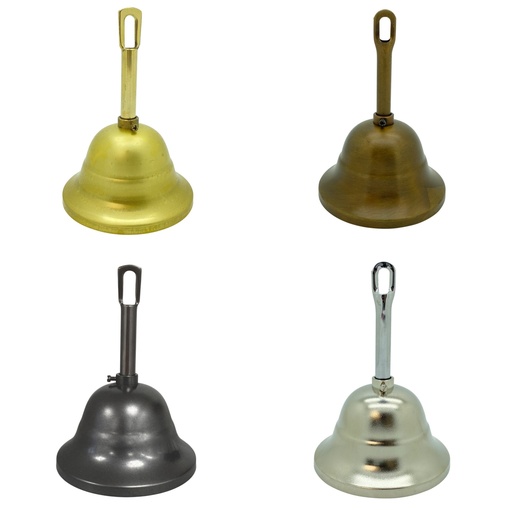

Plain Light Duty	6kg	90mm	Simple design with earth terminal on upper loop.

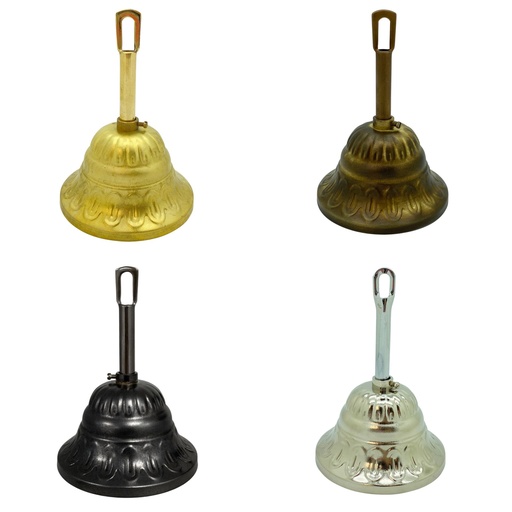

Decorative Light Duty	6kg	90mm	Decorative pressed-metal cup with two earth connections.

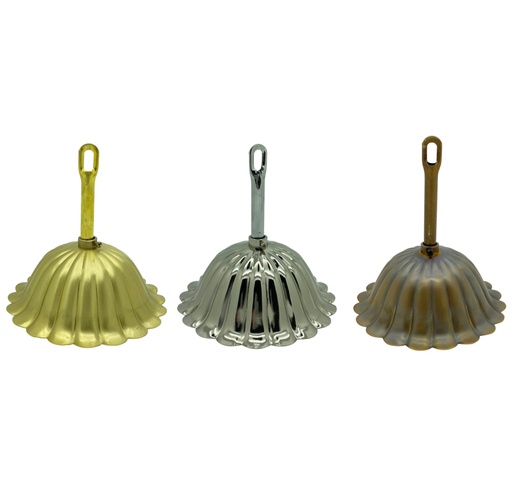

Large Decorative Light Duty	6kg	120mm	Wider cup for concealing ceiling marks or openings.

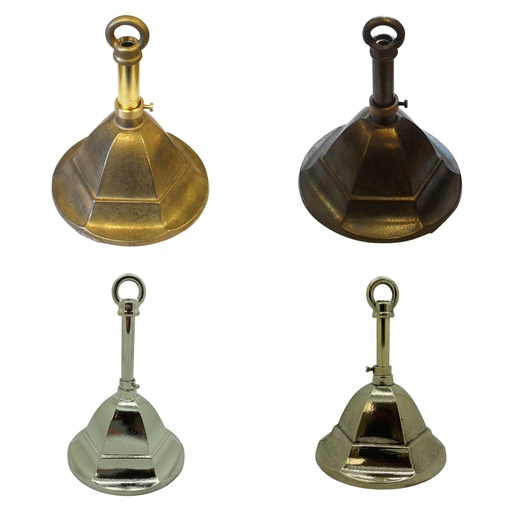

Chelsea	75kg	102mm	Cast brass. Cup height 62mm.

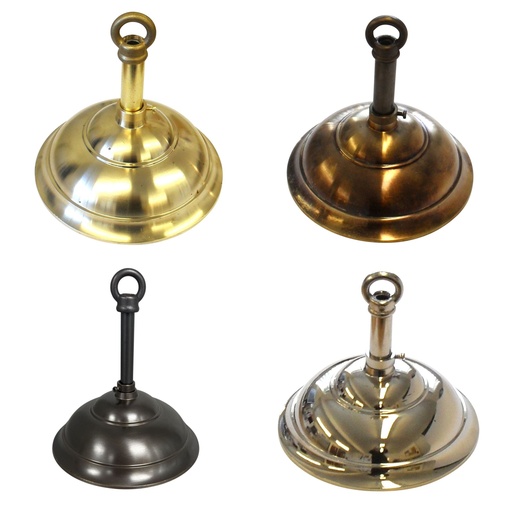

Hampstead	75kg	120mm	Cast brass. Shallow 48mm cup.

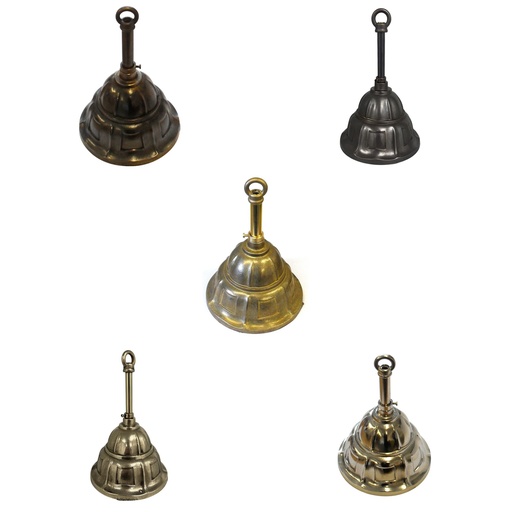

Kensington	75kg	120mm	Cast brass. Deeper 93mm cup.
Kensington Heavy Duty	100kg	120mm	Heavy-duty assembly. Requires compatible 100kg bracket.

Not sure which components you need? Send us a photograph and approximate dimensions and we'll help you identify suitable options.

Part 2 – Suspension

Once you've chosen your ceiling hook or chandelier rose, the next step is choosing a suitable chain and connecting components. The chain supports the chandelier's weight, so its safe working load (SWL), link dimensions and compatibility with the suspension fittings are important considerations.

Connecting the Chain

Depending on the chain and suspension arrangement, there are two common ways to connect the chain to the chandelier or ceiling rose.

Option 1: Quick Repair Chain Link

A discreet, secure connection, particularly useful with welded-link chains. Our heavy-duty quick repair links are made from stainless steel with a plated finish to complement the chandelier.

With a maximum safe load of 300kg, the link measures 51mm long by 25mm wide, with a 7.5mm opening. Always check that the opening is suitable for the chain and suspension loops being connected.

View Heavy Duty Quick Repair Chain Link

Option 2: S Hook

Solid brass S hooks provide a more traditional, visible connection between the chain and the chandelier rose or fitting.

Available in different sizes, with safe working loads ranging from 30kg to 60kg depending on the hook selected. Check both the load rating and dimensions to ensure compatibility.

Open-Link or Welded-Link Chain?

Open-link chain has links that can be opened and closed, allowing the length to be adjusted and connections made where suitable.

Welded-link chain has permanently closed links, making it particularly suitable for higher load ratings. A compatible S hook or quick repair chain link is needed to connect it to the suspension assembly.

Which Ceiling Chain Should I Choose?

Start with the weight of your chandelier, then consider the appearance, link dimensions and required hanging length.

For smaller chandeliers, there are several decorative chain options in brass and other finishes. For fittings weighing over 30kg, the 100kg Heavy Duty Welded Link Chain is the suitable higher-rated option from the range compared below.

Most of our ceiling chains are sold by the metre and supplied in one continuous length unless otherwise specified.

Ceiling Chain Comparison

Compare our ceiling chains by safe working load, link size, material and finish.

Chain Type	SWL	Key Features

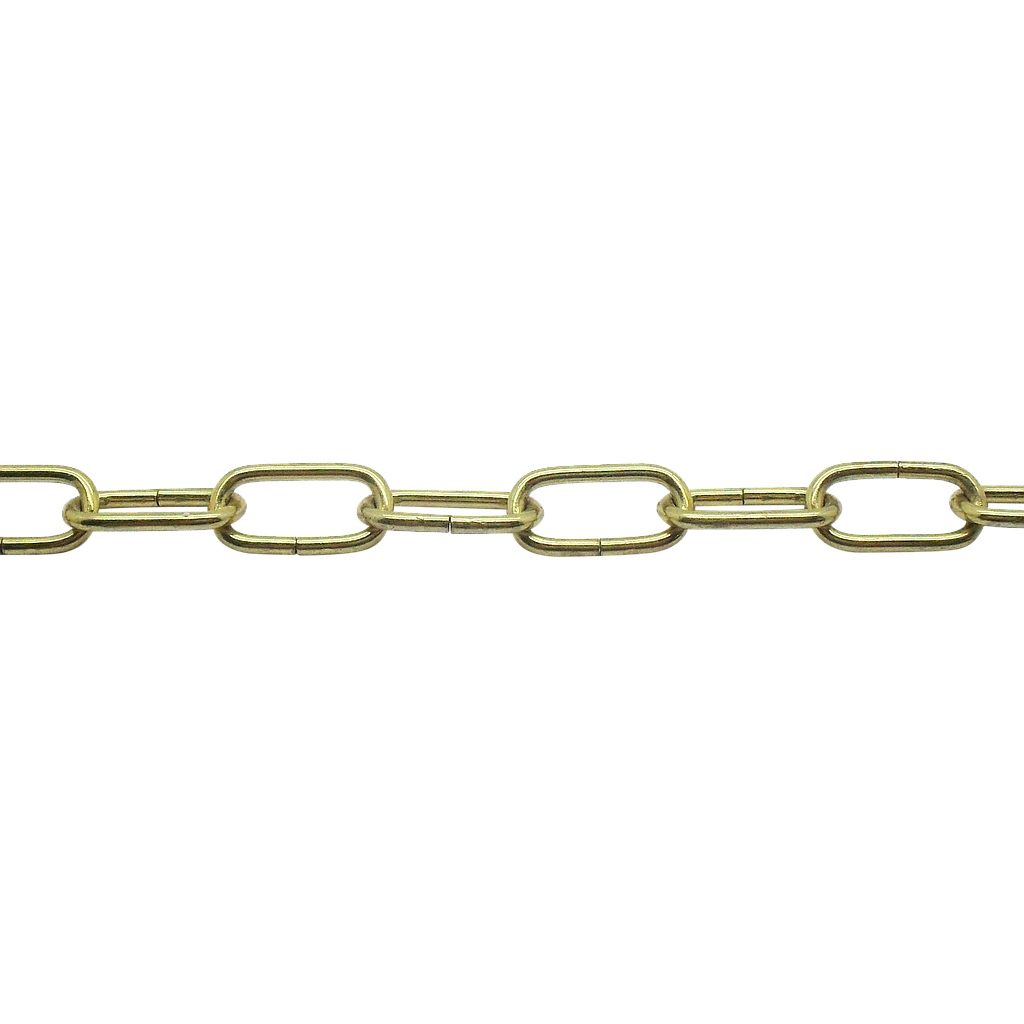

Small Link Ceiling Chain	6kg	20 × 10mm links. Brass, nickel and antique brass finishes. Small links are unsuitable for threading flex through.

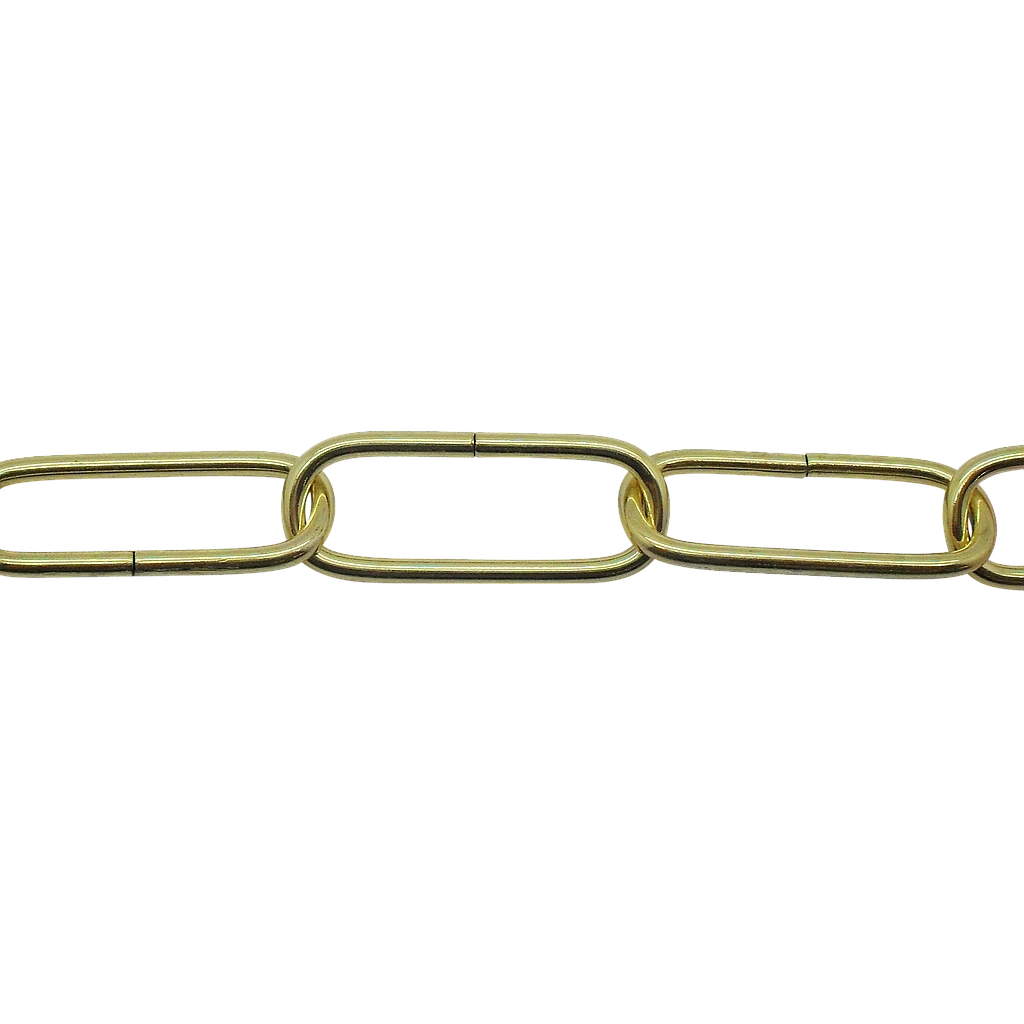

Light Duty Ceiling Chain	6kg	40 × 16mm links. Available in nine finishes. Decorative chain for lighter fittings.

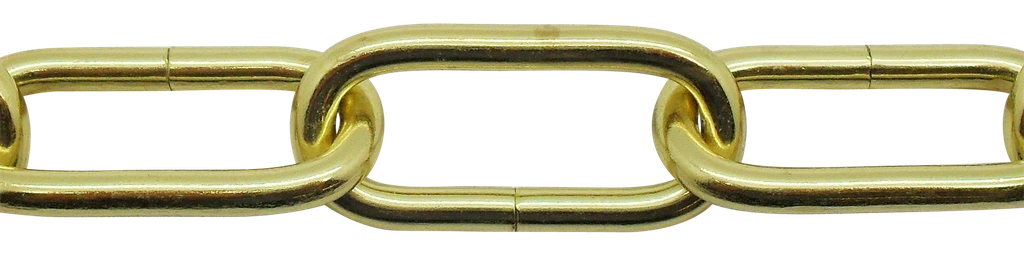

Heavy Duty Ceiling Chain	30kg	47 × 21mm links. Open-link design. Four finishes. Suitable for threading flex through.

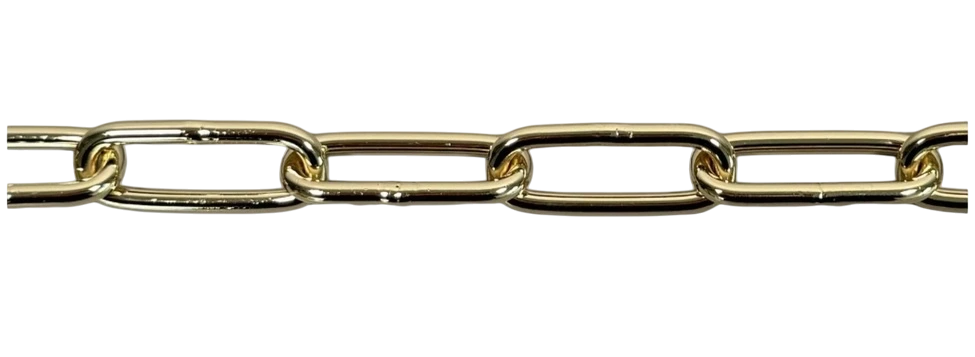

Heavy Duty Welded Link Ceiling Chain	100kg	15 × 40mm links. 4mm gauge, welded construction. Brass, nickel and antique brass finishes. Requires compatible connectors.

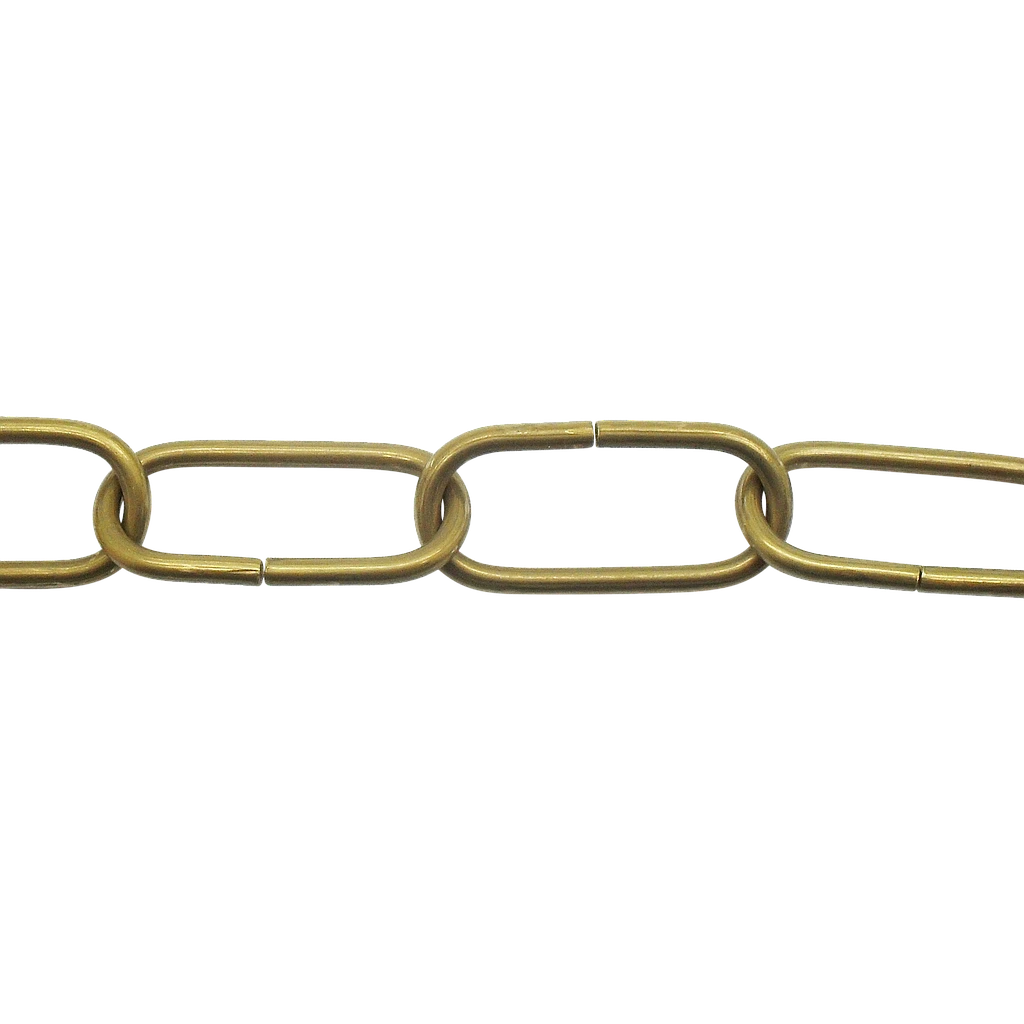

Solid Brass Light Duty Ceiling Chain	6kg	39 × 18mm links. Solid brass construction. Suited to traditional and antique chandeliers.

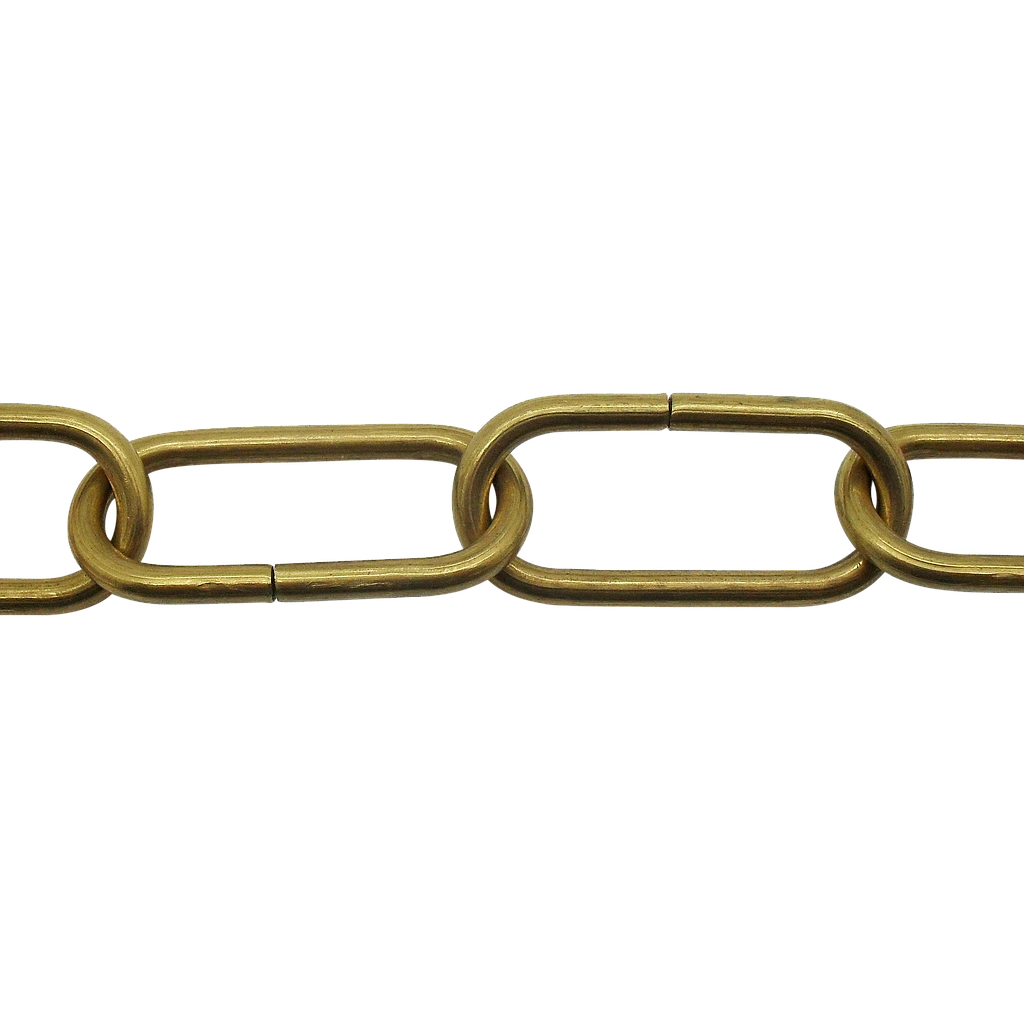

Solid Unpolished Brass Ceiling Chain	10kg	47 × 21mm links. Solid, unpolished brass. Natural finish suited to restoration work.

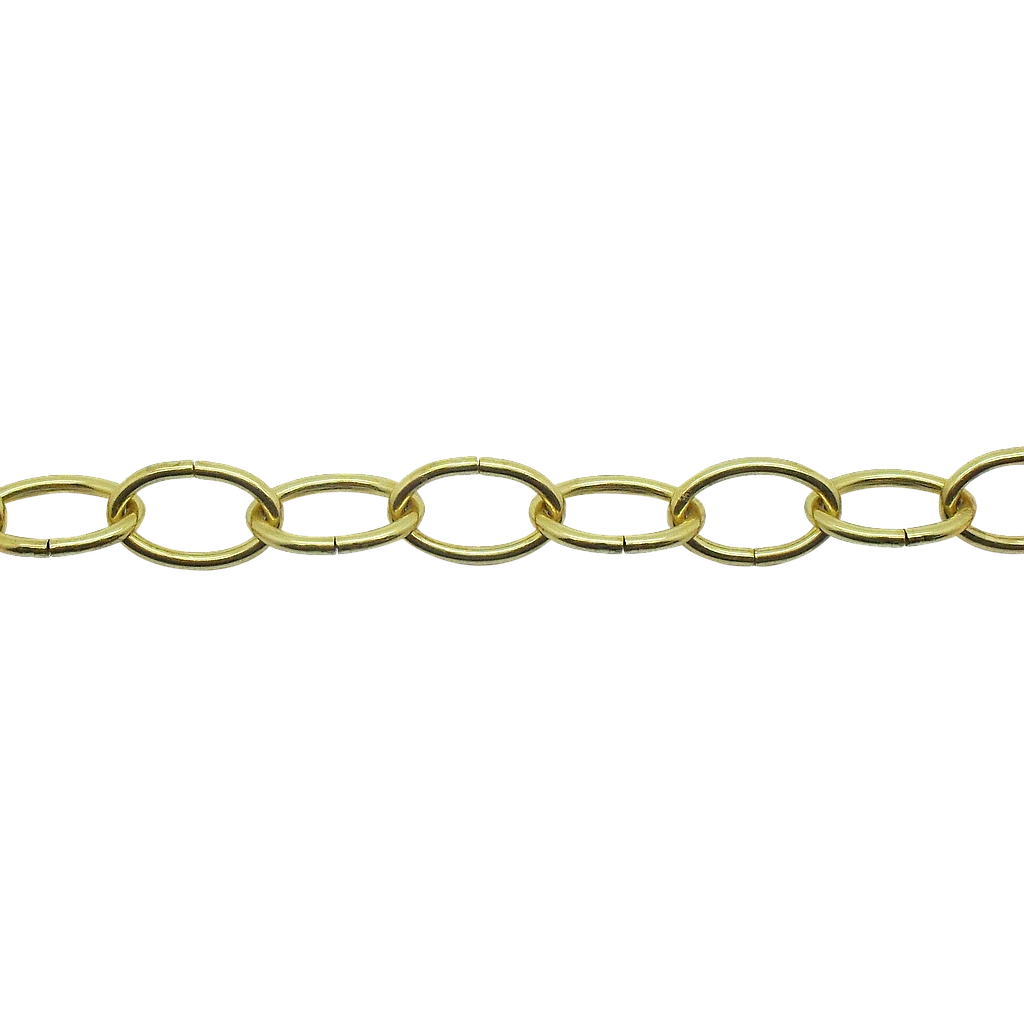

Small Oval Ceiling Chain	6kg	Compact oval-link design. Brass finish. Suitable for smaller chandeliers.
Medium Oval Ceiling Chain	6kg	21 × 15mm links. Brass finish. Decorative oval-link chain.

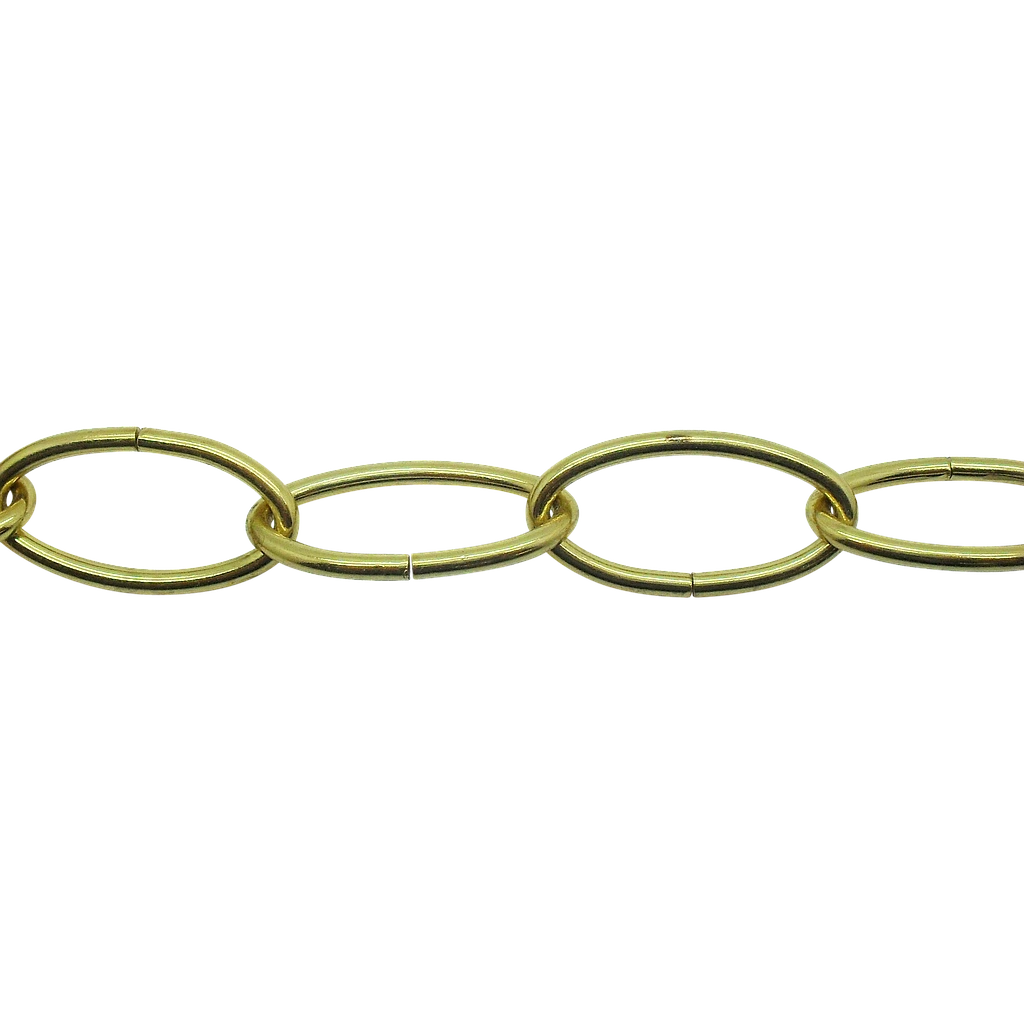

Large Oval Ceiling Chain	6kg	34 × 18mm links. Brass finish. Larger oval links for a more prominent appearance.

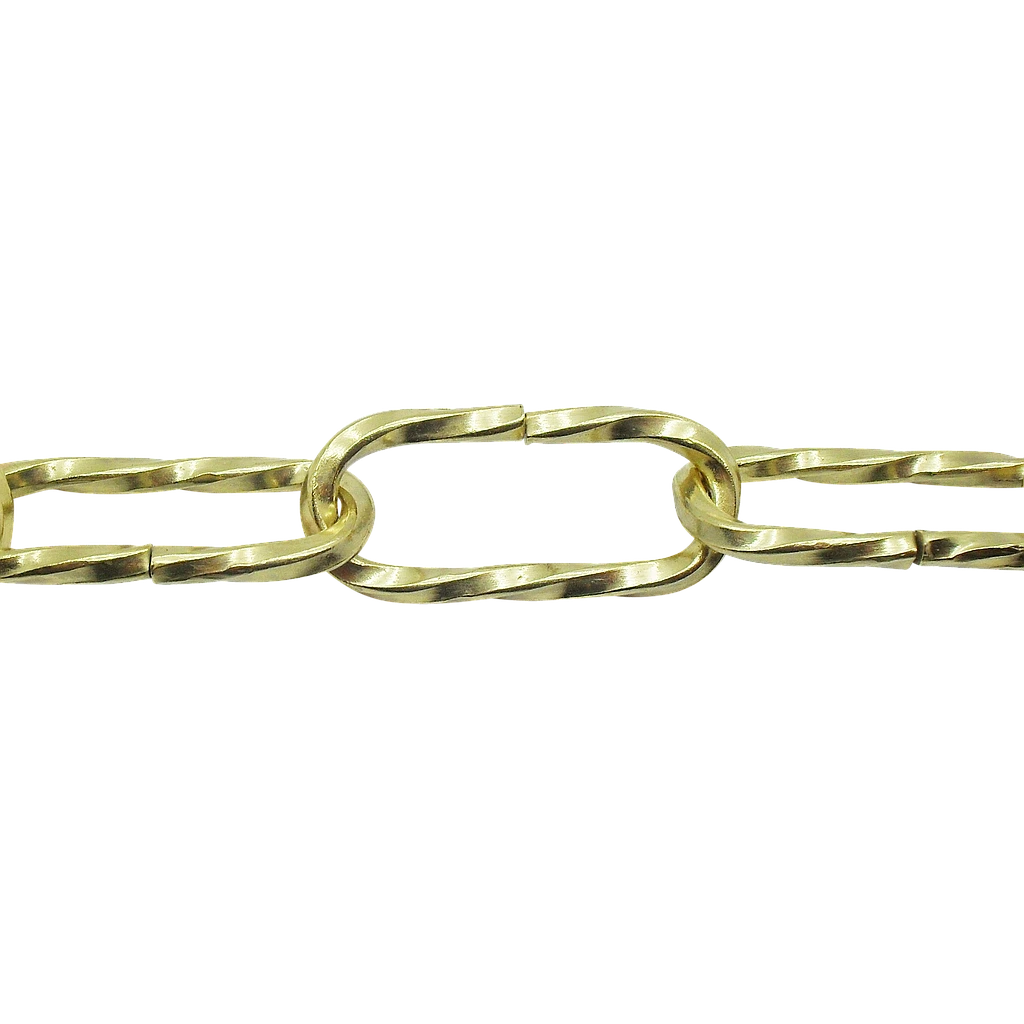

Decorative Twisted Ceiling Chain	6kg	45 × 20mm links. Twisted-link design. Brass and nickel finishes.

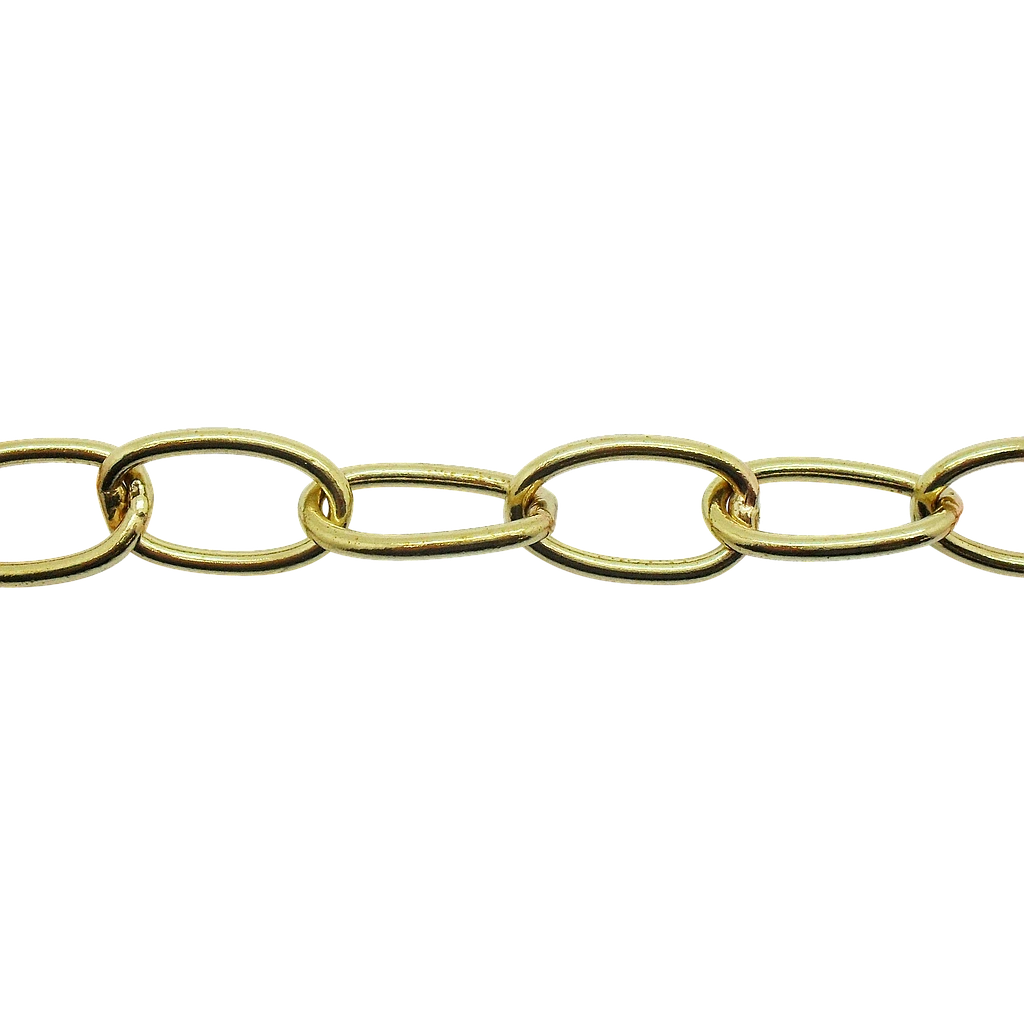

Brass Welded Link Ceiling Chain	25kg	25 × 16mm links. Solid brass, welded-link construction. Requires compatible connecting links or S hooks.

Unsure which chain or connector will suit your chandelier? Send us a photograph, approximate weight and dimensions and we'll help you identify suitable components.

Part 3 – Flex and Lampholders

Once you've chosen your suspension components, the next consideration is the flex and lampholders. Whether you're restoring an antique chandelier or assembling a new fitting, choosing the right components is important for both appearance and electrical compatibility.

Which Flex Should I Choose?

Flexible cable uses stranded conductors rather than solid cores. When choosing chandelier flex, check the overall outside diameter as well as the conductor size (mm²), particularly where the cable needs to pass through narrow chandelier arms or suspension chain links.

For the cable running from the ceiling to the chandelier, 0.75 mm² flex is a common choice, although the correct specification depends on the fitting and its electrical requirements.

Lampfix offers several options, depending on the appearance you're looking for:

• Round Braided Flex – A decorative, fabric-covered flex available in a wide range of colours and finishes. Particularly suited to traditional and period lighting.

• Twisted Braided Flex – Individual fabric-covered cores twisted together, offering a more traditional appearance. Available in various colours.

• Transparent Flex – A discreet option where you want the wiring to be less noticeable, particularly on crystal or glass chandeliers.

• 2183Y PVC Flex – A practical, cost-effective alternative to decorative braided flex, available in eight colours.

When choosing flex, consider the number of cores, conductor size, overall diameter and insulation requirements. Class I fittings require an earth connection, typically using three-core flex. The cable must also be suitable for its location and the chandelier's electrical requirements.

How Much Flex Do I Need?

The length required depends on the chandelier's hanging height and how the flex is routed through the suspension chain and ceiling rose.

Allow sufficient extra length for the electrical connections at either end and any necessary adjustments. It's worth confirming the measurements with your electrician before ordering — excess flex can be shortened, but insufficient length can mean replacing the entire run.

Flex for Internal Chandelier Wiring

Rewiring an antique chandelier can be particularly challenging, especially where the wiring needs to pass through narrow or curved arms.

One option is our 2 Core Flat Extra Thin Heat Resisting Flex. Its slim, flexible construction makes it suitable for certain chandelier wiring applications where space is limited.

For wiring that remains visible on the outside of the chandelier, Transparent Flex can provide a more discreet finish. We offer this in both 0.5 mm² and 0.75 mm² sizes.

The appropriate cable specification, including any earthing requirements, should be confirmed by the electrician carrying out the work.

Which Lampholders Should I Choose?

Chandeliers commonly use E14 SES (Small Edison Screw) lampholders, although some specialist and reproduction fittings use E10 MES (Miniature Edison Screw).

When replacing a chandelier lampholder, it's important to check the cap size, mounting thread, overall height and compatibility with the existing candle tube.

Lampfix offers several specialist options:

• Candle SES Lampholder – A simple skeleton-style lampholder available in four different heights, with a 10 mm threaded entry. Designed to be concealed by a decorative candle tube.

• Adjustable Height SES Lampholder – Available in two adjustable height ranges, 80–100 mm and 100–120 mm, both with a 10 mm threaded entry. Particularly useful when matching the height of existing candle tubes.

• French Candle MES Lampholder – A pre-wired E10 lampholder designed to recreate the appearance of a traditional candle. Available in white or cream and two different heights, making it particularly suitable for specialist chandelier restoration.

Choosing the Right Candle Tubes

Candle tubes, sometimes called candle covers or sleeves, conceal the lampholder and help recreate the appearance of traditional candle fittings.

Available in different heights, diameters, colours and materials, including card and plastic, they can make a significant difference to the finished appearance of a chandelier.

When sourcing replacements, check the internal diameter, overall height and suitability for the lampholder and lamp. This is particularly important when trying to match existing candle tubes on an antique or reproduction chandelier.

Need help finding the right chandelier components?

Chandeliers come in all shapes, sizes and ages, and finding replacement parts isn't always easy.

If you're unsure which components you need, send us a few clear photographs of your chandelier, together with its approximate weight, height and diameter. It also helps to know the hanging length you require and the measurements of any existing components you're replacing.

Whether you're looking for a ceiling rose, suspension chain, replacement lampholder or an unusual component for an antique chandelier, we'll help you narrow down the options.

At Lampfix, we specialise in making unusual and hard-to-find lighting parts easier to find.

Send us your photographs and enquiry — we're happy to help.
