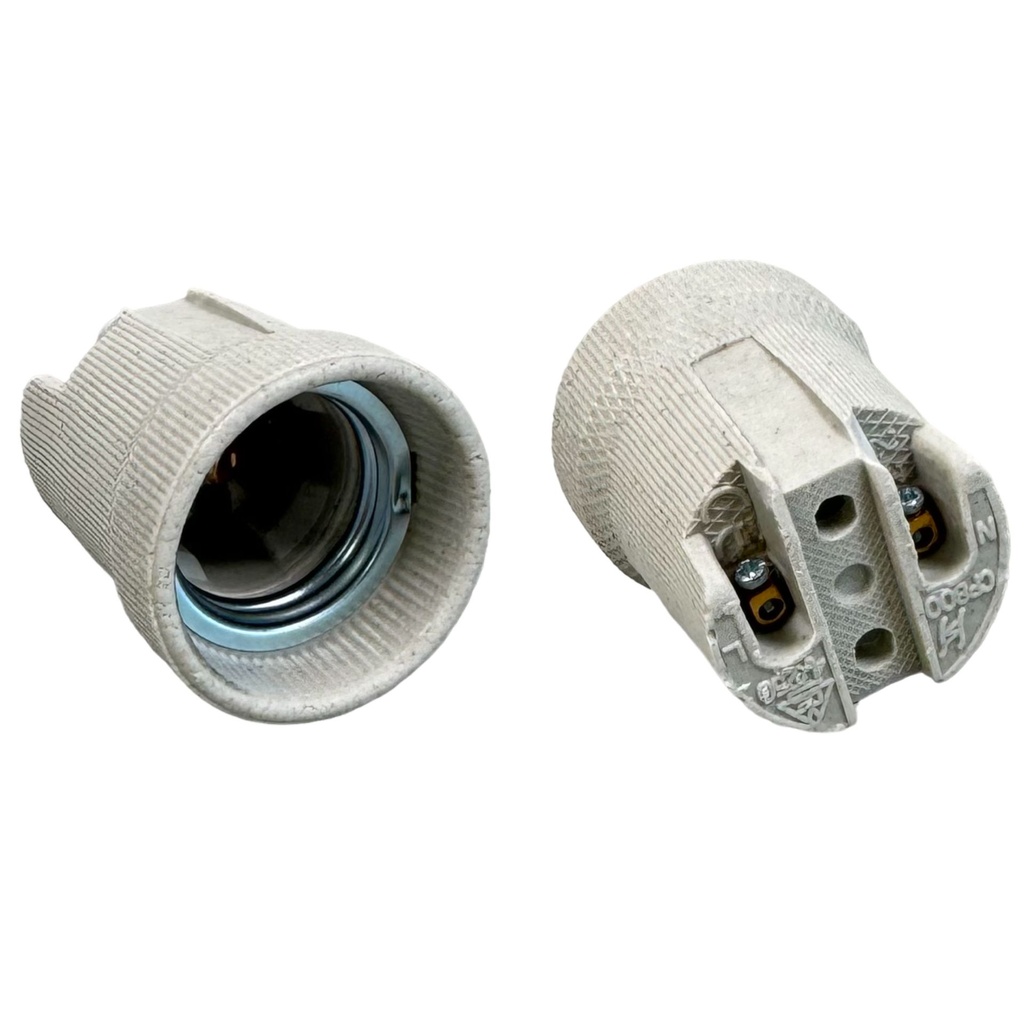

ES Porcelain Lampholder

Designed for various lighting applications, these lampholders feature exposed terminals and are compatible with ES/E27 bulbs, though they do not support shades. The main body dimensions are 42mm in width and 50mm in height. Each variant of these lampholders offers specific mounting options and additional features to suit different needs, detailed further below.

$ 4.46 $ 4.46 Excluding VAT

  • Options
Add to cart
Buy now
Add to wishlist
Contact Us
Documents
#05175 Lampfix Datasheet.pdf #06070 Lampfix Datasheet.pdf

Porcelain Panel Mounting ES Lampholders

  • Exposed Terminals
  • Replacement Porcelain Lampholder
  • ES / E27
  • Not Shade Compatible
  • Main Body Dimensions: Width - 42mm, Height - 50mm


05175 - The most common replacement. Fixes through the x2 holes in the base.

05984 - Especially useful if connecting to lighting thread (M10x1.0mm Fine Pitch) as it has an earth terminal attached.

05985 - Often used as a replacement in an appliance, high-end bulkhead, uplighter or light fitting particularlywhere heat is an issue.

06322 - The bracket on this lampholder stands 14mm away from the base in both directions (right angled). Single hole (5mm diameter) for mounting.

06070 - Length of the bracket on this lampholder is 62mm. Width of the bracket is 8mm. Diameter of the mounting slots is 4mm.

06323 - To clip into mounting hole diameter of 55mm. Total width of bracket including 'wings' is 65mm.
